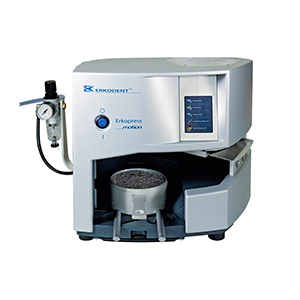

Automated pressure forming unit (requires external compressor)

• Completely automated thermoforming process.
• Easy operation, Erkodent material heating and cooling times pre-programmed.
• Custom programs easily added.
• Touch-less patented temperature sensor for accurate determination of the actual material temperature with no preheating.
• The hot foil is formed vertically onto the model for uniform thicknesses.
• The adaption is instantaneous when the cylinder is engaged.
• Outstanding workplace safety with automatic switch-off function.
• Medium-wave infrared heating without preheating required.
• Connects to your air system – regulator and water separator included.

Technical data:
H 32cm/W 33cm/D 51cm
Weight: 18.9kg
Operating pressure: variably adjustable, 3-6 bar
Operating voltage: ~220 - 240 (100, 110 - 120) volt,
50 - 60 hertz
Wattage: max. 380 watt
Noise level: <70 dB(A)
